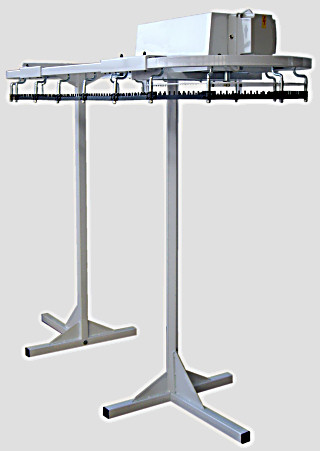

Slots conveyor
|
|
The slots conveyor is based on bars of ten numbered slots.
|
|
 |
Features:
- Motor HP 0,5 - HP 1
380-415V | 3ph | 50-60Hz (standard)
- Bi-directional hand switch
- White epoxy powder coating
- Delivery: assembly kit
Optionals:
- Inverter
- Automatic system
|

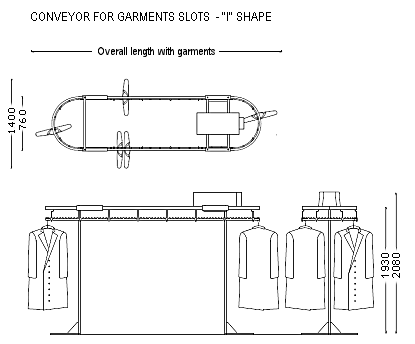

Available in several dimensions:
| Places |
Length with
garments
(mm) |
Width with
garments
(mm) |
No.
Uprights |
| 160 |
2770 |
1400 |
2 |
| 180 |
3075 |
1400 |
2 |
| 200 |
3380 |
1400 |
2 |
| 220 |
3685 |
1400 |
2 |
| 240 |
3990 |
1400 |
3 |
| 260 |
4295 |
1400 |
3 |
| 280 |
4600 |
1400 |
3 |
| 300 |
4905 |
1400 |
3 |
| 320 |
5210 |
1400 |
3 |
| 340 |
5515 |
1400 |
4 |
| 360 |
5820 |
1400 |
4 |
| 380 |
6125 |
1400 |
4 |
| 400 |
6430 |
1400 |
4 |
| 420 |
6735 |
1400 |
4 |
| 440 |
7040 |
1400 |
5 |
| 460 |
7345 |
1400 |
5 |
| 480 |
7650 |
1400 |
5 |
| 500 |
7955 |
1400 |
5 |
| 520 |
8260 |
1400 |
5 |
| 540 |
8565 |
1400 |
6 |
| 560 |
8870 |
1400 |
6 |
| 580 |
9175 |
1400 |
6 |
| 600 |
9480 |
1400 |
6 |
|
|
Other shapes:
 |
|
