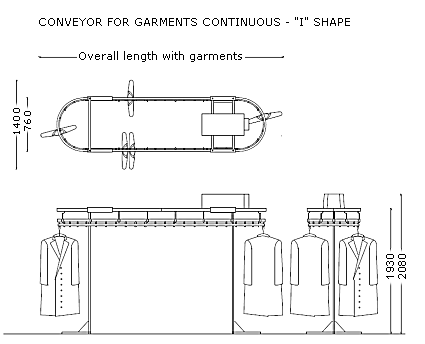

Continuous conveyor

The continuous conveyor is based on continuous bars, without predetermined positions to permit to store the greatest possible number of garments.





Features:

  • Motor HP 0,5 - HP 1
    380-415V | 3ph | 50-60Hz (standard)
  • Bi-directional hand switch
  • White epoxy powder coating
  • Delivery: assembly kit

Optionals:

  • Inverter
  • Automatic system

Available in several dimensions:


Places Length with
garments
(mm)		 Width with
garments
(mm)		 No.
Uprights
160 2770 1400 2
180 3075 1400 2
200 3380 1400 2
220 3685 1400 2
240 3990 1400 3
260 4295 1400 3
280 4600 1400 3
300 4905 1400 3
320 5210 1400 3
340 5515 1400 4
360 5820 1400 4
380 6125 1400 4
400 6430 1400 4
420 6735 1400 4
440 7040 1400 5
460 7345 1400 5
480 7650 1400 5
500 7955 1400 5
520 8260 1400 5
540 8565 1400 6
560 8870 1400 6
580 9175 1400 6
600 9480 1400 6

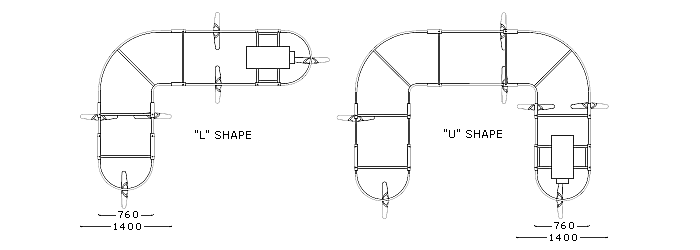

Other shapes:
